Bridge Mud Scraper for Efficient Thickener Rotating Sludge Management
Basic Info.
Model NO. |
ZBGN peripheral drive full bridge mud scraper |
|
Type |
Separate |
Method |
Physical Treatment |
|
Usage |
Industrial |
Device Model |
Jg-10.3 |
|
Pool Diameter |
Ø10.30m |
Depth of Surrounding Pool |
5.10m |
|
Motor Power |
0.55kw IP55(with Gear Reducer) |
Transport Package |
Export Cases |
|
Specification |
customizable |
Trademark |
Lanjiang |
|
Origin |
No. 18XinyuRoad, Liuhe District, Nanjing City |
HS Code |
8479820090 |
|
Production Capacity |
5000 Units/Year |
Application
First, the use of the introduction

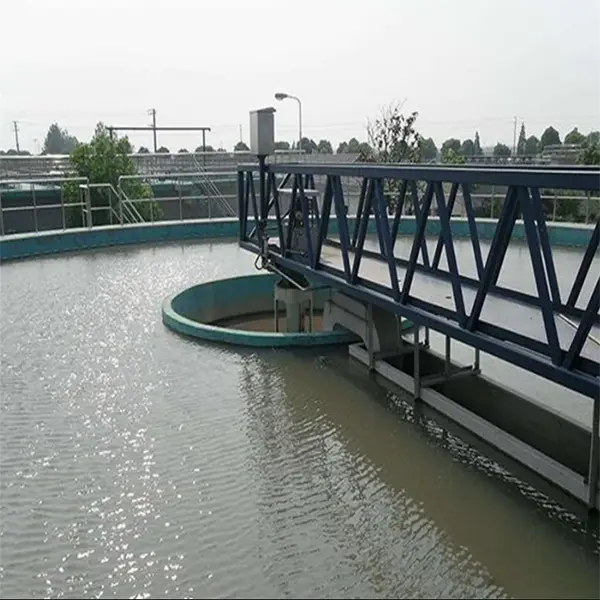

As the sewage makes its entrance via the central pipe, it is gracefully channelled through the middle stable cylinder. Here, it elegantly flows outward towards the periphery, with suspended solids progressively settling at the pool's base. These are diligently gathered and scraped by the efficient scraper mechanism, funnelling them into the central sink. This innovative system assures a seamless discharge of sludge from the pool, powered by water pressure.
This remarkable machine is a symphony of components working harmoniously to deliver outstanding performance. It features a robust motor, a precise driving device, a sturdy working bridge, and a central rotation mechanism. The scraper hanger, scraper and bracket, and mud bucket scraper all play pivotal roles in its operation. Additionally, it comes equipped with an on-site control box for easy management. For enhanced functionality, optional stainless steel outlet weir plates and slag blocking devices can be included to meet specific needs.
Working bridge |
carbon steel anti-corrosion |
Walkway plate |
grid FRP plate |
Center Rotation Mechanism |
Component |

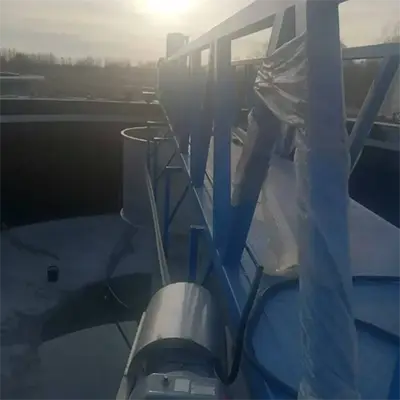

Our Bridge Mud Scraper features a top-tier transmission reducer, meticulously chosen from renowned domestic manufacturers to ensure unmatched quality assurance. This component guarantees reliable operation and promises a long service life, making it a cornerstone of dependable performance.

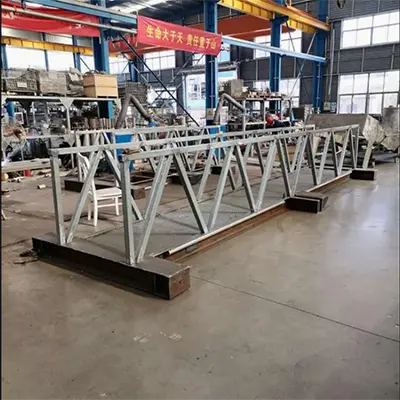

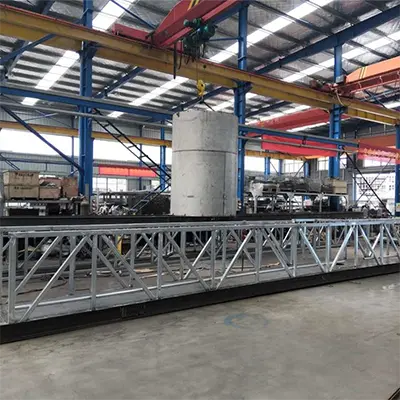

The robust working bridge of our state-of-the-art system is a full-bridge fixed installation, engineered with precision to maintain a deflection of less than 1/360 of the span. Crafted with excellence, it boasts a construction of high-quality carbon steel and square pipes, ensuring durability and superior structural integrity.

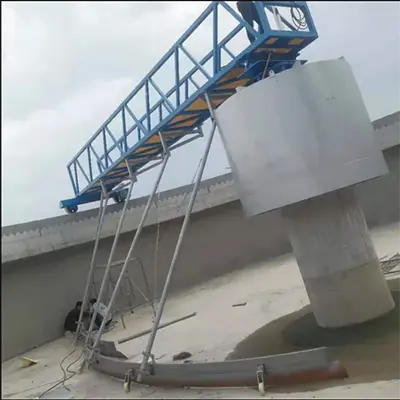

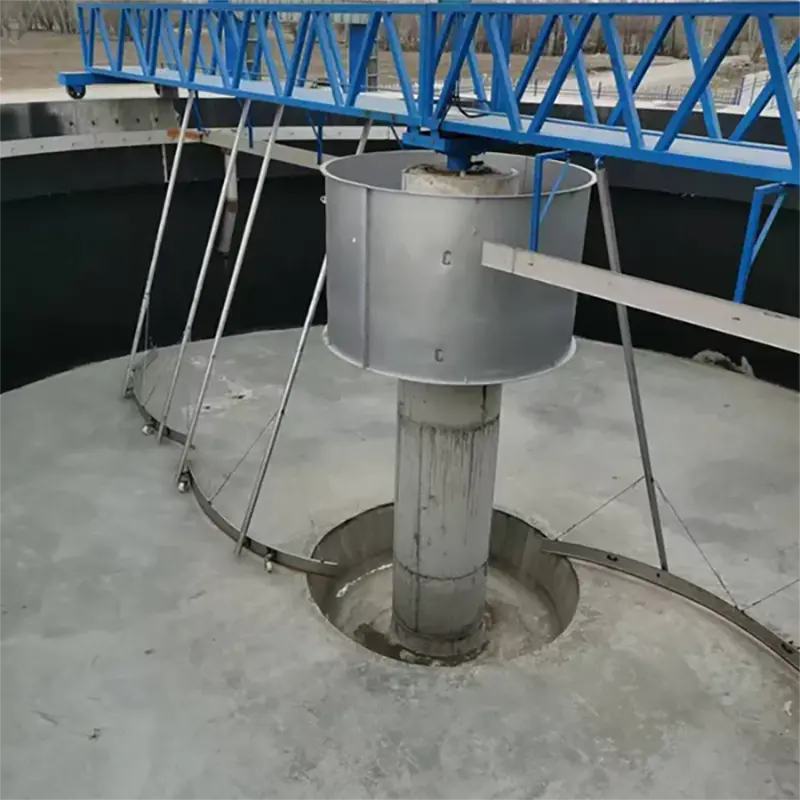

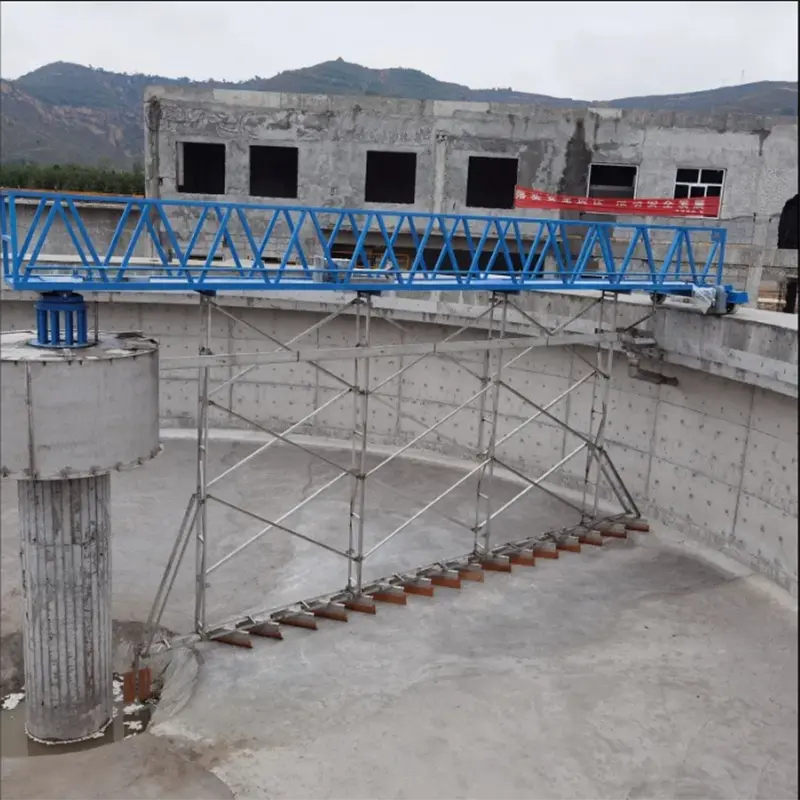

At the heart of our design is the central rotating mechanism, expertly crafted with a central support and turntable. We employ a standardized bearing for optimal functionality. The lower section of this mechanism seamlessly integrates with civil engineering works through secure welding or bolting, ensuring a stable and efficient operation.
