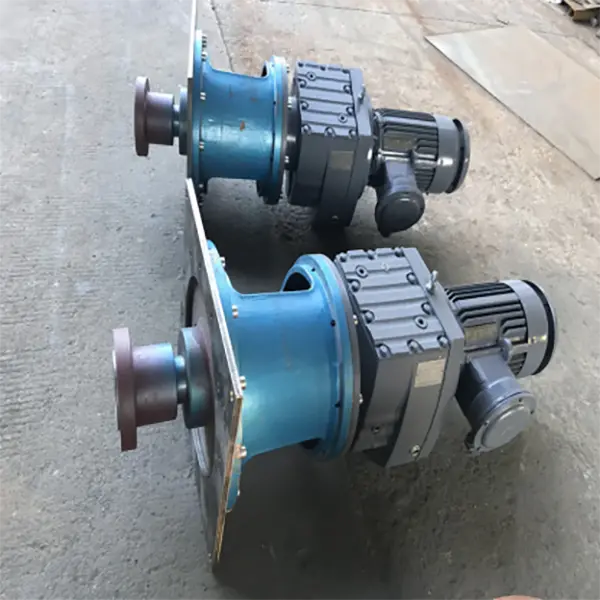

Durable 110V Paddle Mixer Single Paddle Mixer
Features
1.Simple structure, reliable operation, no blockage, easy maintenance.

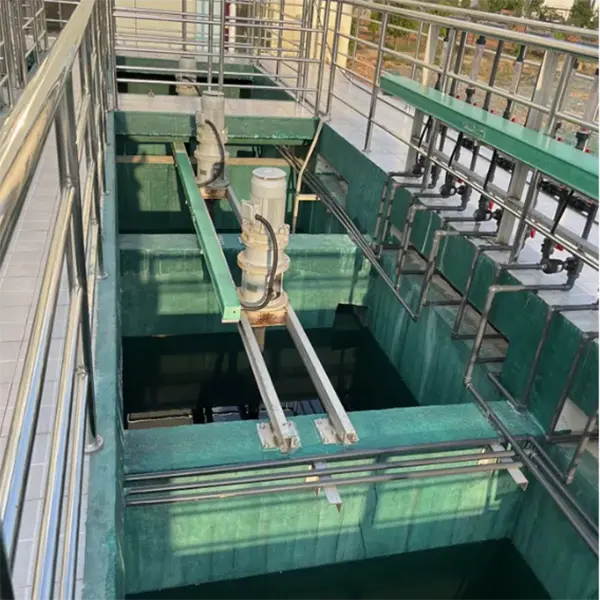

2.It can meet the requirements of the flocculation law, so that each stage in the flocculation process has different stirring strengths, which can adapt to the changes of water volume and water temperature. The head loss is small, the structure of the pool is simple, and the combination of external energy is convenient.
3.After setting the stepless speed regulation, the stirring intensity can be adjusted with the change of water volume, raw water turbidity and dosage, so as to achieve satisfactory flocculation effect and save the dosage of medicine.
Basic Info.
Model NO. |
JBJ paddle mixer |
|
Type |
Mixer |
Method |
Physical Treatment |
|
Usage |
Industrial |
Standard |
0.37-1.1kw |
|
Rotation Speed |
35/52/88r/Min |
Model No. |
Jbj |
|
Waterproof Rating |
IP68 |
Transport Package |
Export Cases |
|
Specification |
customizable |
Trademark |
Lanjiang |
|
Origin |
No.18XinyuRoad, LiuheDistrict,Nanjing City |
HS Code |
8479820090 |
|
Production Capacity |
5000 Units/Year |
It has the advantages of low noise, convenient operation, fast discharging speed, long service life of lining plates and blades, and convenient maintenance.
major parameter |
JBJ1-350 |
JBJ1-450 |
JBJ1-600 |
JBJ1-400 |
JBJ1-600 |
JBJ1-800 |
JBJ1-550 |
JBJ1-700 |
JBJ1-900 |
rotate speed r/min |
88 |
52 |
35 |
88 |
52 |
35 |
88 |
52 |
35 |
Motor Power Kw |
0.37 |
0.55 |
0.75 |
1.1 |
|||||
L mm |
1500 |
||||||||
D mm |
350 |
450 |
600 |
400 |
600 |
800 |
550 |
700 |
900 |
D1 mm |
100 |
||||||||
D2 mm |
175 |
||||||||
D3 mm |
210 |
||||||||
n*d mm |
4*φ19 |
||||||||
