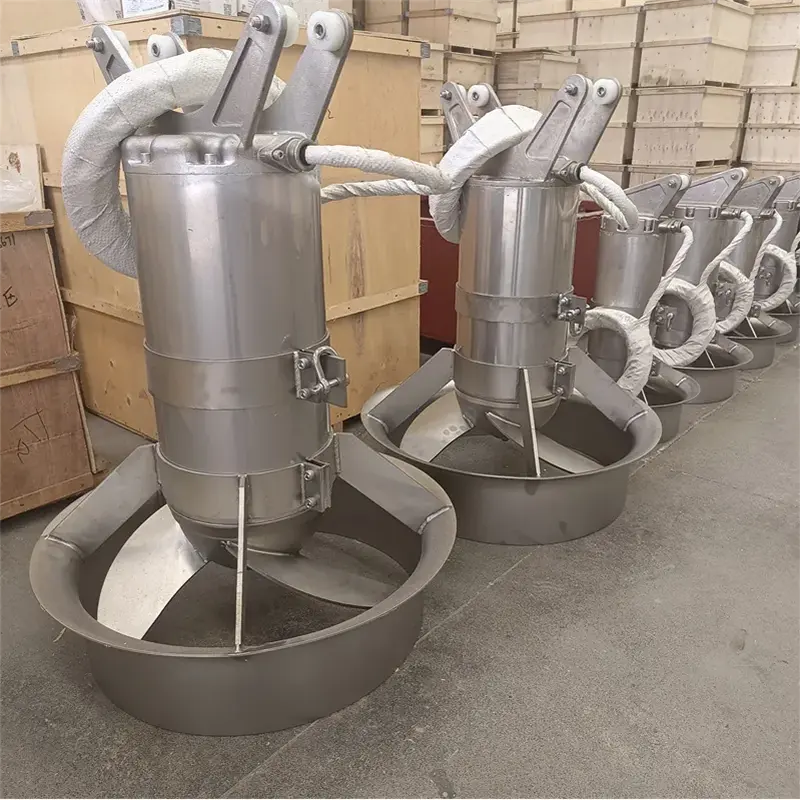

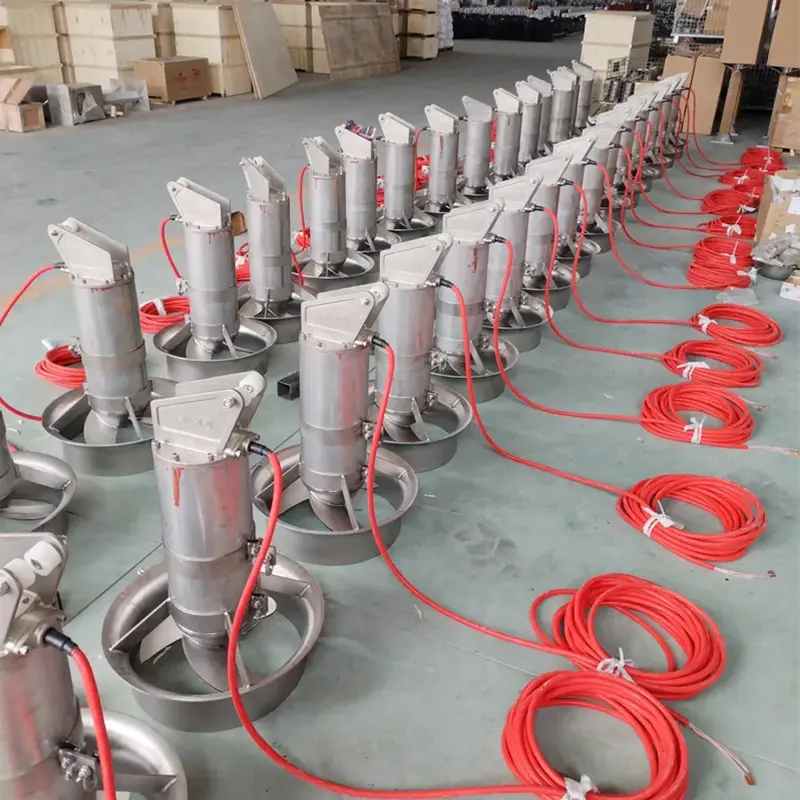

Qjb Submersible Mixer Sewage Treatment Equipment

Low-speed flow Propeller series Suits for aeration tanks in industrial and urban sewage treatment plants,which generate strong water flow with low tangential flow, which can be used for circulation and nitrification,denitrification and create water flow for phosphorus removal , etc.
Conditions Of Application:
The highest temperature of the medium shall not exceed 40ºC
The scope of pH value of the medium:5~9;
medium density of not more than 1150 kg/m³
diving depth in general not more than 20 m when at the long-term diving operation

The submersible mixer can also be installed in a Floating Series. FQJB series Floating submersible mixer is  re-manufactured on the basis of the submersible mixer, a stainless steel pontoon is added. Specially used in sewage treatment plants, no discharge renovation and sewage treatment in rivers

Compared with the traditional shaft mixer, the advantage of the QJB submersible mixer is that it can produce different flow directions. Due to the different installation positions of the mixer, various flow direction patterns can be obtained, thereby creating a better flow effect in the pool and eliminating the dead angle of mixing. The mixer The required supporting power is determined according to the size of the pool, the density of the medium, the viscosity and the depth of the stirring medium, and one or more mixers are selected according to the specific situation. In order to ensure the efficient and energy-saving operation of the mixer in different pool types, please refer to the following typical installation forms.
