Qjb-W Sewage Agitator Submersible Mixer for Wastewater Treatment Process Core Filter
Basic Info.
|
Model NO. |
QJB-W |
|
Type |
Submersible Mixer |
|
Method |
Combined Treatment |
|
Usage |
Industrial |
|
Condition |
New |
|
Protection Grade |
IP68 |
|
Insulation Class |
Class F |
|
Environment Temperature |
0-40 |
|
pH Value |
6-9 |
|
Max Submergence Depth |
10m |
|
Transport Package |
Export Cases |
|
Specification |
Customizable |
|
Trademark |
Lanjiang |
|
Origin |
No.18XinyuRod,LiuheDistrict,Nanjing City |
|
HS Code |
8479820090 |
|
Production Capacity |
5000 Units/Year |
Product Details
1.Cable:The cable adopts special watertight cable;
2.Junction box:The junction box is fully enclosed and isolated from the surrounding liquidand stator box;
3.Motor:50Hz squirrel cage 3-phase submersible asynchronous motor,F-class insulation,protection class IP68.The motor is cooled by the surrounding medium;
4.Shaft:The shaft of the motor is made of stainless steel,and the rotor is tested for dynamicbalance;
5.Seal:The static seal is an O-ring.The shaft seal is a mechanical seal,which isolates the oilchamber from the surrounding medium;
6.Bearings:Imported bearings are used,and the designed service life can reach more than100,000 hours;
7.Oil chamber:oil is used to lubricate and cool the friction pair of the mechanical seal,andisolate the permeate;

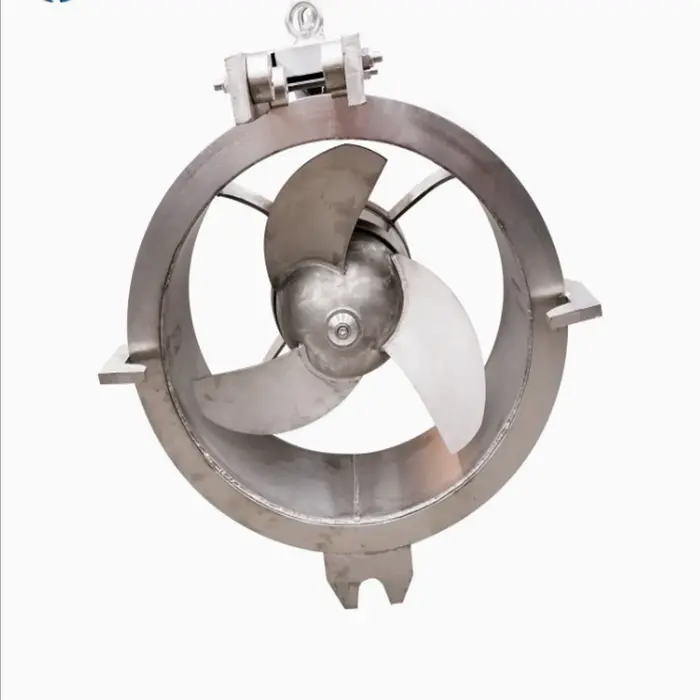

8.Impeller:The impeller has three blades,the blades are wide and thin,the surface issmooth and swept back,efficient and unobstructed,and has a self-cleaning function;
9.Inlet cone:the purpose of the inlet cone is to form a better flow state;
10.Discharge joint:The discharge joint is used to fix the inlet tapered pipe on the outlet pipe;
11.Guiding device:The guiding device consists of two pipes(catheters)and an upper catheter
FEATURES
1. Specially designed according to micro-lift and large flow, with high efficiency
2. anti-clogging, winding, reliable use;
3. Using a new sealing material, it can operate safely and continuously for more than10,000 hours;
4. Compact structure, easy installation and maintenance.
Product Parameters
|
Model |
Motor Power |
Rated Current |
Impeller Diameter |
Protection Grade |
Insulation Level |
Nominal Diameter(mm) |
|
QJB-W 1.5 |
1.5 |
4.1 |
400 |
IP68 |
F |
400 |
|
QJB-W 2.5 |
2.5 |
6.8 |
400 |
IP68 |
F |
400 |
|
QJB-W4 |
4 |
15 |
615 |
IP68 |
F |
600 |
|
QJB-W5 |
5 |
16 |
615 |
IP68 |
F |
600 |
|
QJB-W7.5 |
7.5 |
23 |
615 |
IP68 |
F |
600 |
|
QJB-W10 |
10 |
30 |
615 |
IP68 |
F |
600 |
|
QJB-W15 |
15 |
42 |
615 |
IP68 |
F |
600 |
|
QJB-W18.5 |
18.5 |
52 |
615 |
IP68 |
F |
600 |
Application
1. During continuous operation, the medium temperature is not higher than 40 ºC
2. The PH value of the medium is 6-9.
3. The maximum submersion depth is 10m.
